Run OpenLane Flow

⚠️ Warning: This example requires uses packages which are locally available when cloning and installing the stable verision of the github source code. See example setup as follows:

!git clone https://github.com/daquintero/piel.git !cd piel/ !pip install -e .[tools] !pip install -r requirements_notebooks.txt

import piel

Assume we are starting from the iic-osic-home design directory, all our design files are there in the format as described in the piel sections/project_structure documentation. You have followed the previous environment docs/examples/00_setup_environment to run the projects in this example:

We will go through the process of running only Openlane v2 configured projects (v1 is not supported/depreciated).

Each design flow might have its own implementation strategy. Combinatorial designs follow different flows to sequential designs and this can be automated if we want to quickly go through an implementation strategy. Let’s verify our implementation configuration.

Basic Inverter Project

# # Uncomment to configure
# # To configure the project in a `piel` compatible directory format.
# piel.create_empty_piel_project(
#     project_name="inverter",
#     parent_directory="designs/"
# )
# # Now copy the project from openlane-ci
# # Now let's pip install this
# ! pip install -e designs/inverter
# # You might have to resetart the kernel after this

import inverter

Now let’s verify that we can implement this project using the raw openlane2 script per the config.json file provided.

dir(piel.file_system)

! openlane designs/inverter/inverter/config.json

Amaranth-Driven Flow

It might be desired to easily go from a design directory to an actual silicon chip purely from python. In this section of the example we will use the digital design files in an amaranth-generated design flow and use openlane2 to perform the hardening of the logic.

There is further documentation on migrating from the Openlane v1 flow to v2 in the following links:

You need to make sure you have installed amaranth_driven_flow as part of the 02_digital_design_simulation example instructions.

import amaranth_driven_flow
import piel

The project directory is found here if you have installed the project python module:

piel.return_path(amaranth_driven_flow)

openlane_2_run_amaranth_flow = piel.tools.openlane.run_openlane_flow(
    design_directory=amaranth_driven_flow,
    only_generate_flow_setup=True,
)

This should generate a openlane 2 driven layout in the amaranth_driven_flow directory if you change the only_generate_configuration flag to True. Let’s list the available runs in this project:

all_amaranth_driven_design_runs = piel.tools.openlane.find_all_design_runs(
    design_directory=amaranth_driven_flow,
)
all_amaranth_driven_design_runs

{'v2': [PosixPath('/home/daquintero/piel/docs/examples/designs/amaranth_driven_flow/amaranth_driven_flow/runs/RUN_2023-09-06_14-17-18')],
 'v1': [PosixPath('/home/daquintero/piel/docs/examples/designs/amaranth_driven_flow/amaranth_driven_flow/runs/RUN_2023.08.22_00.06.09')]}

latest_amaranth_driven_openlane_runs = piel.tools.openlane.find_latest_design_run(
    design_directory=amaranth_driven_flow,
)
latest_amaranth_driven_openlane_runs

We can check what is the path to our generated gds file accordingly:

piel.tools.openlane.get_gds_path_from_design_run(
    design_directory=amaranth_driven_flow,
)

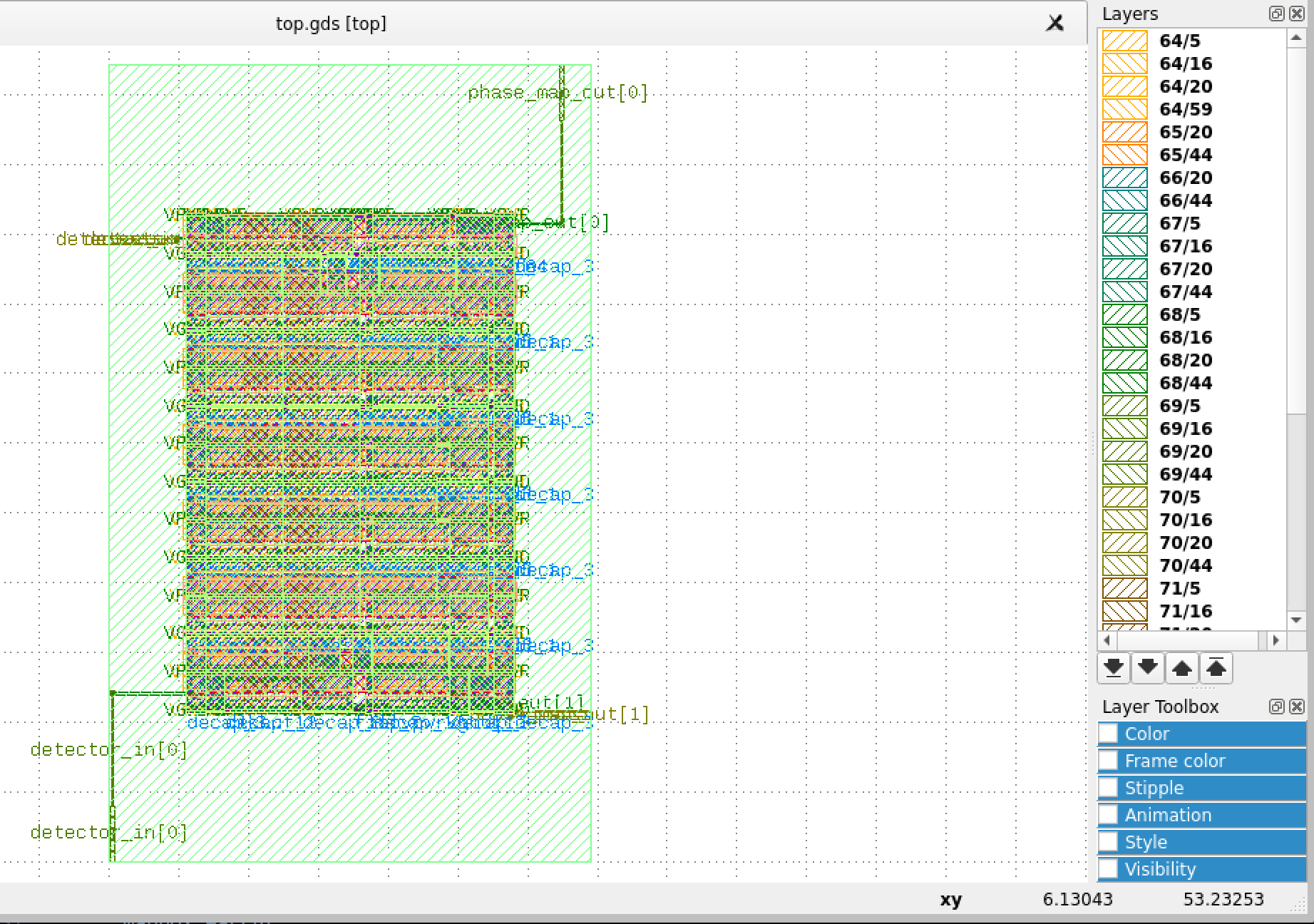

It is quite easy to visualise it on the jupyter lab using the gdsfactory integration widget:

amaranth_driven_flow_component = (
    piel.integration.create_gdsfactory_component_from_openlane(
        design_directory=amaranth_driven_flow,
    )
)
amaranth_driven_flow_component

Very cool! So now we can interact and generate openlane 2 designs easily. Let’s explore now getting some design metrics out of this design.

Design Metrics Analysis

openlane 2 is a very powerful tool for digital design space exploration, and it is nice to be able to explore the design metrics in a pythonic way. You can explore most meaningful design metrics in metrics.json for a particular design.

piel.read_metrics_openlane_v2(amaranth_driven_flow)

{'design__instance__count': 4,
 'design__instance_unmapped__count': 0,
 'synthesis__check_error__count': 0,
 'design__max_slew_violation__count__corner:nom_tt_025C_1v80': 0,
 'design__max_fanout_violation__count__corner:nom_tt_025C_1v80': 0,
 'design__max_cap_violation__count__corner:nom_tt_025C_1v80': 0,
 'clock__skew__worst_hold__corner:nom_tt_025C_1v80': 0.0,
 'clock__skew__worst_setup__corner:nom_tt_025C_1v80': 0.0,
 'timing__hold__ws__corner:nom_tt_025C_1v80': 4.192324,
 'timing__setup__ws__corner:nom_tt_025C_1v80': 5.192763,
 'timing__hold__tns__corner:nom_tt_025C_1v80': 0.0,
 'timing__setup__tns__corner:nom_tt_025C_1v80': 0.0,
 'timing__hold__wns__corner:nom_tt_025C_1v80': 0.0,
 'timing__setup__wns__corner:nom_tt_025C_1v80': 0.0,
 'timing__hold_vio__count__corner:nom_tt_025C_1v80': 0,
 'timing__hold_r2r_vio__count__corner:nom_tt_025C_1v80': 0,
 'timing__setup_vio__count__corner:nom_tt_025C_1v80': 0,
 'timing__setup_r2r_vio__count__corner:nom_tt_025C_1v80': 0,
 'design__max_slew_violation__count': 0,
 'design__max_fanout_violation__count': 0,
 'design__max_cap_violation__count': 0,
 'clock__skew__worst_hold': 0.0,
 'clock__skew__worst_setup': 0.0,
 'timing__hold__ws': 4.040462,
 'timing__setup__ws': 4.594259,
 'timing__hold__tns': 0.0,
 'timing__setup__tns': 0.0,
 'timing__hold__wns': 0.0,
 'timing__setup__wns': 0.0,
 'timing__hold_vio__count': 0,
 'timing__hold_r2r_vio__count': 0,
 'timing__setup_vio__count': 0,
 'timing__setup_r2r_vio__count': 0,
 'design__die__bbox': '0.0 0.0 34.5 57.12',
 'design__core__bbox': '5.52 10.88 28.98 46.24',
 'design__instance__displacement__total': 0,
 'design__instance__displacement__mean': 0,
 'design__instance__displacement__max': 0,
 'route__wirelength__estimated': 122.622,
 'design__violations': 0,
 'design__instance__count__setup_buffer': 0,
 'design__instance__count__hold_buffer': 0,
 'antenna__violating__nets': 0,
 'antenna__violating__pins': 0,
 'antenna__count': 0,
 'route__net': 10,
 'route__net__special': 2,
 'route__drc_errors__iter:1': 0,
 'route__wirelength__iter:1': 104,
 'route__drc_errors': 0,
 'route__wirelength': 104,
 'route__vias': 32,
 'route__vias__singlecut': 32,
 'route__vias__multicut': 0,
 'design__disconnected_pins__count': 0,
 'route__wirelength__max': 37.52,
 'design__max_slew_violation__count__corner:nom_ss_100C_1v60': 0,
 'design__max_fanout_violation__count__corner:nom_ss_100C_1v60': 0,
 'design__max_cap_violation__count__corner:nom_ss_100C_1v60': 0,
 'clock__skew__worst_hold__corner:nom_ss_100C_1v60': 0.0,
 'clock__skew__worst_setup__corner:nom_ss_100C_1v60': 0.0,
 'timing__hold__ws__corner:nom_ss_100C_1v60': 4.558208,
 'timing__setup__ws__corner:nom_ss_100C_1v60': 4.600908,
 'timing__hold__tns__corner:nom_ss_100C_1v60': 0.0,
 'timing__setup__tns__corner:nom_ss_100C_1v60': 0.0,
 'timing__hold__wns__corner:nom_ss_100C_1v60': 0.0,
 'timing__setup__wns__corner:nom_ss_100C_1v60': 0.0,
 'timing__hold_vio__count__corner:nom_ss_100C_1v60': 0,
 'timing__hold_r2r_vio__count__corner:nom_ss_100C_1v60': 0,
 'timing__setup_vio__count__corner:nom_ss_100C_1v60': 0,
 'timing__setup_r2r_vio__count__corner:nom_ss_100C_1v60': 0,
 'design__max_slew_violation__count__corner:nom_ff_n40C_1v95': 0,
 'design__max_fanout_violation__count__corner:nom_ff_n40C_1v95': 0,
 'design__max_cap_violation__count__corner:nom_ff_n40C_1v95': 0,
 'clock__skew__worst_hold__corner:nom_ff_n40C_1v95': 0.0,
 'clock__skew__worst_setup__corner:nom_ff_n40C_1v95': 0.0,
 'timing__hold__ws__corner:nom_ff_n40C_1v95': 4.04327,
 'timing__setup__ws__corner:nom_ff_n40C_1v95': 5.398018,
 'timing__hold__tns__corner:nom_ff_n40C_1v95': 0.0,
 'timing__setup__tns__corner:nom_ff_n40C_1v95': 0.0,
 'timing__hold__wns__corner:nom_ff_n40C_1v95': 0.0,
 'timing__setup__wns__corner:nom_ff_n40C_1v95': 0.0,
 'timing__hold_vio__count__corner:nom_ff_n40C_1v95': 0,
 'timing__hold_r2r_vio__count__corner:nom_ff_n40C_1v95': 0,
 'timing__setup_vio__count__corner:nom_ff_n40C_1v95': 0,
 'timing__setup_r2r_vio__count__corner:nom_ff_n40C_1v95': 0,
 'design__max_slew_violation__count__corner:min_tt_025C_1v80': 0,
 'design__max_fanout_violation__count__corner:min_tt_025C_1v80': 0,
 'design__max_cap_violation__count__corner:min_tt_025C_1v80': 0,
 'clock__skew__worst_hold__corner:min_tt_025C_1v80': 0.0,
 'clock__skew__worst_setup__corner:min_tt_025C_1v80': 0.0,
 'timing__hold__ws__corner:min_tt_025C_1v80': 4.188328,
 'timing__setup__ws__corner:min_tt_025C_1v80': 5.195879,
 'timing__hold__tns__corner:min_tt_025C_1v80': 0.0,
 'timing__setup__tns__corner:min_tt_025C_1v80': 0.0,
 'timing__hold__wns__corner:min_tt_025C_1v80': 0.0,
 'timing__setup__wns__corner:min_tt_025C_1v80': 0.0,
 'timing__hold_vio__count__corner:min_tt_025C_1v80': 0,
 'timing__hold_r2r_vio__count__corner:min_tt_025C_1v80': 0,
 'timing__setup_vio__count__corner:min_tt_025C_1v80': 0,
 'timing__setup_r2r_vio__count__corner:min_tt_025C_1v80': 0,
 'design__max_slew_violation__count__corner:min_ss_100C_1v60': 0,
 'design__max_fanout_violation__count__corner:min_ss_100C_1v60': 0,
 'design__max_cap_violation__count__corner:min_ss_100C_1v60': 0,
 'clock__skew__worst_hold__corner:min_ss_100C_1v60': 0.0,
 'clock__skew__worst_setup__corner:min_ss_100C_1v60': 0.0,
 'timing__hold__ws__corner:min_ss_100C_1v60': 4.551795,
 'timing__setup__ws__corner:min_ss_100C_1v60': 4.607092,
 'timing__hold__tns__corner:min_ss_100C_1v60': 0.0,
 'timing__setup__tns__corner:min_ss_100C_1v60': 0.0,
 'timing__hold__wns__corner:min_ss_100C_1v60': 0.0,
 'timing__setup__wns__corner:min_ss_100C_1v60': 0.0,
 'timing__hold_vio__count__corner:min_ss_100C_1v60': 0,
 'timing__hold_r2r_vio__count__corner:min_ss_100C_1v60': 0,
 'timing__setup_vio__count__corner:min_ss_100C_1v60': 0,
 'timing__setup_r2r_vio__count__corner:min_ss_100C_1v60': 0,
 'design__max_slew_violation__count__corner:min_ff_n40C_1v95': 0,
 'design__max_fanout_violation__count__corner:min_ff_n40C_1v95': 0,
 'design__max_cap_violation__count__corner:min_ff_n40C_1v95': 0,
 'clock__skew__worst_hold__corner:min_ff_n40C_1v95': 0.0,
 'clock__skew__worst_setup__corner:min_ff_n40C_1v95': 0.0,
 'timing__hold__ws__corner:min_ff_n40C_1v95': 4.040462,
 'timing__setup__ws__corner:min_ff_n40C_1v95': 5.400592,
 'timing__hold__tns__corner:min_ff_n40C_1v95': 0.0,
 'timing__setup__tns__corner:min_ff_n40C_1v95': 0.0,
 'timing__hold__wns__corner:min_ff_n40C_1v95': 0.0,
 'timing__setup__wns__corner:min_ff_n40C_1v95': 0.0,
 'timing__hold_vio__count__corner:min_ff_n40C_1v95': 0,
 'timing__hold_r2r_vio__count__corner:min_ff_n40C_1v95': 0,
 'timing__setup_vio__count__corner:min_ff_n40C_1v95': 0,
 'timing__setup_r2r_vio__count__corner:min_ff_n40C_1v95': 0,
 'design__max_slew_violation__count__corner:max_tt_025C_1v80': 0,
 'design__max_fanout_violation__count__corner:max_tt_025C_1v80': 0,
 'design__max_cap_violation__count__corner:max_tt_025C_1v80': 0,
 'clock__skew__worst_hold__corner:max_tt_025C_1v80': 0.0,
 'clock__skew__worst_setup__corner:max_tt_025C_1v80': 0.0,
 'timing__hold__ws__corner:max_tt_025C_1v80': 4.196024,
 'timing__setup__ws__corner:max_tt_025C_1v80': 5.189277,
 'timing__hold__tns__corner:max_tt_025C_1v80': 0.0,
 'timing__setup__tns__corner:max_tt_025C_1v80': 0.0,
 'timing__hold__wns__corner:max_tt_025C_1v80': 0.0,
 'timing__setup__wns__corner:max_tt_025C_1v80': 0.0,
 'timing__hold_vio__count__corner:max_tt_025C_1v80': 0,
 'timing__hold_r2r_vio__count__corner:max_tt_025C_1v80': 0,
 'timing__setup_vio__count__corner:max_tt_025C_1v80': 0,
 'timing__setup_r2r_vio__count__corner:max_tt_025C_1v80': 0,
 'design__max_slew_violation__count__corner:max_ss_100C_1v60': 0,
 'design__max_fanout_violation__count__corner:max_ss_100C_1v60': 0,
 'design__max_cap_violation__count__corner:max_ss_100C_1v60': 0,
 'clock__skew__worst_hold__corner:max_ss_100C_1v60': 0.0,
 'clock__skew__worst_setup__corner:max_ss_100C_1v60': 0.0,
 'timing__hold__ws__corner:max_ss_100C_1v60': 4.562827,
 'timing__setup__ws__corner:max_ss_100C_1v60': 4.594259,
 'timing__hold__tns__corner:max_ss_100C_1v60': 0.0,
 'timing__setup__tns__corner:max_ss_100C_1v60': 0.0,
 'timing__hold__wns__corner:max_ss_100C_1v60': 0.0,
 'timing__setup__wns__corner:max_ss_100C_1v60': 0.0,
 'timing__hold_vio__count__corner:max_ss_100C_1v60': 0,
 'timing__hold_r2r_vio__count__corner:max_ss_100C_1v60': 0,
 'timing__setup_vio__count__corner:max_ss_100C_1v60': 0,
 'timing__setup_r2r_vio__count__corner:max_ss_100C_1v60': 0,
 'design__max_slew_violation__count__corner:max_ff_n40C_1v95': 0,
 'design__max_fanout_violation__count__corner:max_ff_n40C_1v95': 0,
 'design__max_cap_violation__count__corner:max_ff_n40C_1v95': 0,
 'clock__skew__worst_hold__corner:max_ff_n40C_1v95': 0.0,
 'clock__skew__worst_setup__corner:max_ff_n40C_1v95': 0.0,
 'timing__hold__ws__corner:max_ff_n40C_1v95': 4.045971,
 'timing__setup__ws__corner:max_ff_n40C_1v95': 5.395393,
 'timing__hold__tns__corner:max_ff_n40C_1v95': 0.0,
 'timing__setup__tns__corner:max_ff_n40C_1v95': 0.0,
 'timing__hold__wns__corner:max_ff_n40C_1v95': 0.0,
 'timing__setup__wns__corner:max_ff_n40C_1v95': 0.0,
 'timing__hold_vio__count__corner:max_ff_n40C_1v95': 0,
 'timing__hold_r2r_vio__count__corner:max_ff_n40C_1v95': 0,
 'timing__setup_vio__count__corner:max_ff_n40C_1v95': 0,
 'timing__setup_r2r_vio__count__corner:max_ff_n40C_1v95': 0,
 'design_powergrid__voltage__worst__net:VPWR__corner:nom_tt_025C_1v80': 1.8,
 'design_powergrid__drop__average__net:VPWR__corner:nom_tt_025C_1v80': 4.69729e-11,
 'design_powergrid__drop__worst__net:VPWR__corner:nom_tt_025C_1v80': 1.9324e-10,
 'ir__voltage__worst': 1.8,
 'ir__drop__avg': 4.7e-11,
 'ir__drop__worst': 1.93e-10,
 'design__xor_difference__count': 0,
 'magic__drc_error__count': 0,
 'magic__illegal_overlap__count': 0,
 'design__lvs_device_difference__count': 0,
 'design__lvs_net_differences__count': 0,
 'design__lvs_property_fails__count': 0,
 'design__lvs_errors__count': 0,
 'design__lvs_unmatched_devices__count': 0,
 'design__lvs_unmatched_nets__count': 0,
 'design__lvs_unmatched_pins__count': 0}

Some important metrics tend to be:

• design__die__bbox Die core size

• design__core__bbox Logic core size

• design__instance__count Amount of instances in implemented logic

You might care of a few more depending on what you are aiming to do.
